Configuring Trading Pickup

Introduction:

This article provides step-by-step instructions for configuring trading pickup in Axway's B2Bi software to establish connectivity with EDI partners. Trading pickup serves as the location where customers push their files to EDI partners, facilitating seamless data exchange.

Problem Statement or Use Case:

Organizations need to establish a robust mechanism for connecting to EDI partners to exchange electronic business documents efficiently and securely.

How to Configure a new Trading Pickup

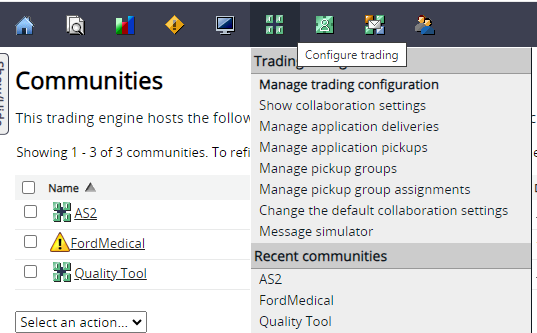

Enter Community Information: Choose the related community where the connection will reside by selecting trading configuration from the top tool bar in B2Bi.

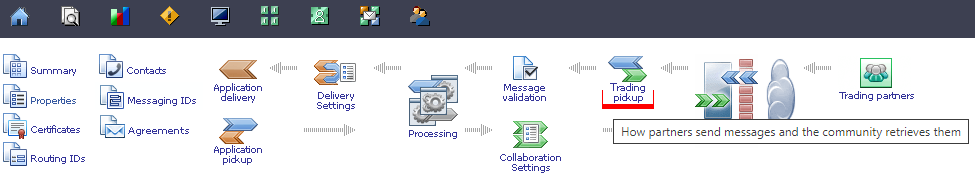

In the flow, select the trading pickup icon.

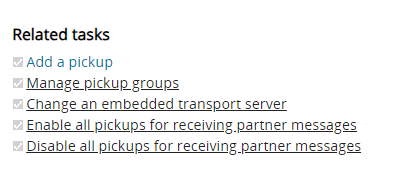

Click the "Add Pickup" hyperlink at the bottom of the page.

• Configure Message Protocol: Select "EDINT AS2 (HTTP)" as the message protocol

• Choose HTTP Transport: Choose "Use system's global embedded HTTP server" to dictate the URL used.

• Name Pickup Directory: Create a name for the pickup directory following the naming convention: EDIP-AS2-CLIENTNAME.

• Name Exchange: Use the following format to name each exchange based on the scenario.

  • Prefix: Start with a prefix that identifies the purpose or type of exchange for example 'TP'.
  • Identifier: Include a clear identifier for the partner from whom the messages are being received to clarify the direction of the communication. The 'AS2' represents data being pushed to 'EDIP'

                             ex: TP-AS2-EDIP-PartnerName

Save Changes:

Save the configuration. The pickup will be added to the list of pickups associated with the community.

1. Update URL:
2. In the Name column, select the hyperlink for the newly created pickup.
3. Change the "URL used by Partner" value to match the file location created.
4. Configure Advanced Settings:
5. Select the "Advanced" tab.
6. Change the message processing to "limited."

Click "Save Changes" to finalize the configuration.

Troubleshooting Tips:

Ensure that the URL used by the partner matches the file location created.

Double-check community and pickup configurations for accuracy.

Monitor system logs for any errors during message transmission.

Best Practices:

• Regularly review and update trading pickup configurations to accommodate changes in partner requirements.
• Test connectivity with EDI partners after configuration to ensure smooth data exchange.
• Document configurations and naming conventions for future reference
• For more detailed instructions and troubleshooting guidance, refer to Axway's official documentation and user guides.

Version and Compatibility Information:

Conclusion:

By following the steps outlined in this article, organizations can effectively configure trading pickup in Axway's B2Bi software to establish seamless connectivity with EDI partners.

Revision History:

Version 1.0 (March 25, 2024): Initial draft of the article.
